Automatic Dams

GXP-10

Gate Valve Actuator

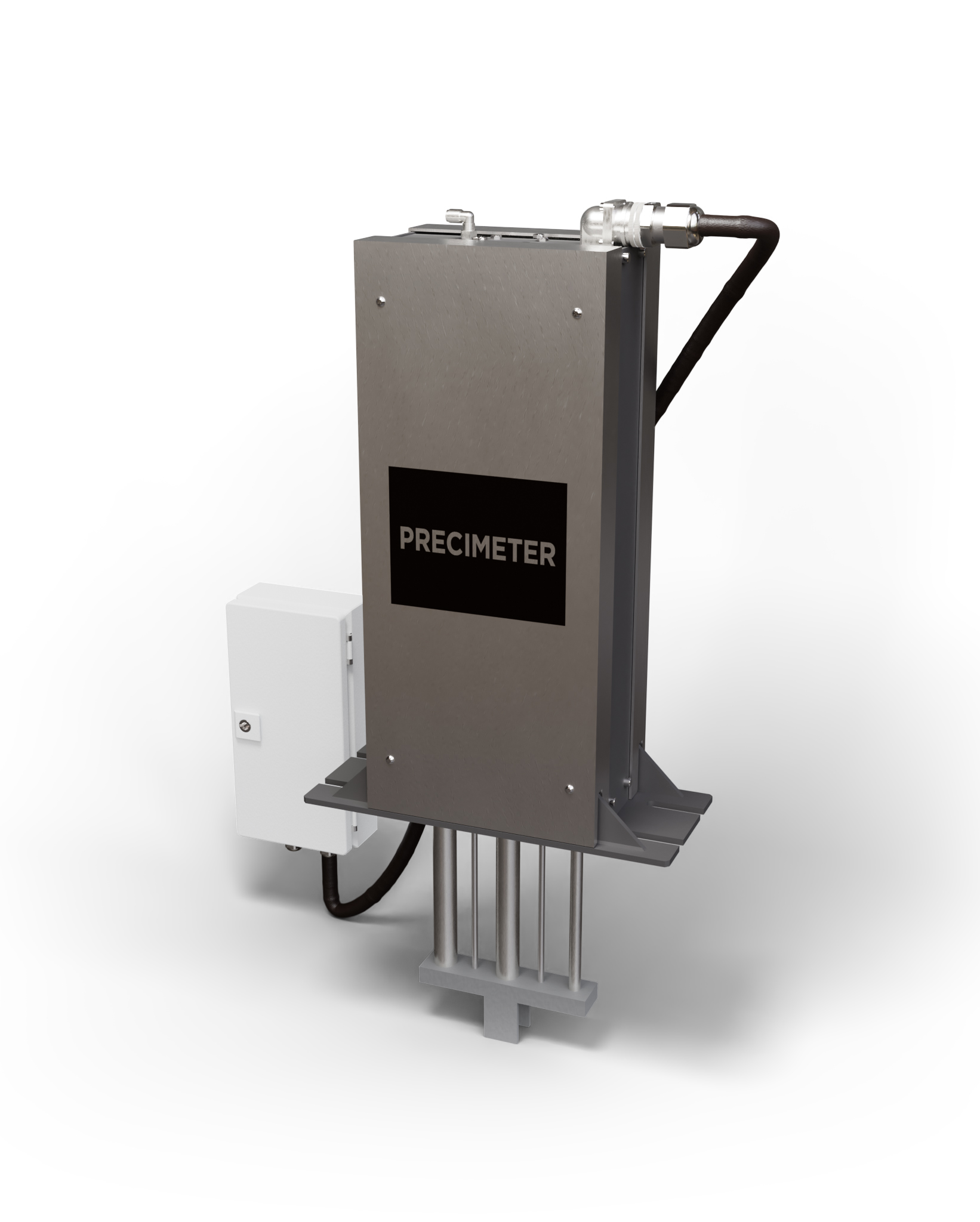

This Automatic and adjustable actuator is primarily used to control the flow of molten metal along a trough/launder through a gate valve (Dam).

Download Data Sheet
Here’s a caption for this image, it gives context to the image, and looks cool.

Product information

Launder level control with Precimeter Gate Valve Actuator GXP-10 connected to the ProH level sensor and MLC control panel enables a very accurate control in the metal level downstream casting process.

The Precimeter Gate Valve Actuator GXP-10 can be mounted in different positions with simple linkage arm systems. To avoid oxidation and high temperature exposure one mounting example is at the side of the casting launder.

Advantages

✔
Accurate control
✔
Robust design
✔
Easy installation
✔
Minimal maintenance
✔
Flexible mounting options
✔
Available with two stroke lengths
✔
Terminal connection for parameter settings
✔
Ethernet protocol (optional)
Product features
Laser sensor type
CD2350R3000
CD1000R900
CD1150R400
CD180R200
CD900R750
CD450R300
CD450R300
CD1500R1600
CD800R1500
CD900R500
CD700R300
CD450R300
CD300R300
CD240R325
Clearance distance
2350 mm (92.5")
1000 mm (39.4")
1150 mm (45.3")
180 mm (7.1")
900 mm (35.4")
450 mm (17.7")
450 mm (17.7")
1500 mm (59.0")
800 mm (31.5")
900 mm (34.4")
700 mm (27.6")
450 mm (17.7")
300 mm (11.8")
240 mm (9.4")
Measurement range
3000 mm (118.1")
900 mm (35.4")
400 mm (15.8")
200 mm (7.9")
750 mm (29.5")
300 mm (11.8")
300 mm (11.8")
1600 mm (63.0")
1500 mm (59.0")
500 mm (19.7")
300 mm (11.8")
300 mm (11.8")
300 mm (11.8")
325 mm (12.8")
Resolution
0.74mm (0.029")
0.22mm (0.009")
0.1mm (0.004")
0.05mm (0.002")
+- 1mm (0.04")
0.074mm (0.03")
0.074mm (0.03")
0.39mm (0.016")
0.37mm (0.015")
0.122mm (0.005")
0.08mm (0.003")
0.08mm (0.003")
0.08mm (0.003")
0.08mm (0.003")
Technical specifications

GXP-10 - 1

Stroke Range:

GXP-10 - 2

Accuracy:

GXP-10 - 3

Gate Load Range:

GXP-10 - 4

Positioning:

GXP-10 - 5

Power Requirement:

GXP-10 - 6

Cooling:

GXP-10 - 7

Interface:

Operation Signals

GXP-10 - 8

Arm/Rod Position:

GXP-10 - 9

Calibration:

Feedback signals

GXP 10 - 10

Arm/Pin Position:

GXP 10 - 11

Internal Temp Output:

GXP 10 - 12

Ethernet Protocol:
32-254 mm (1.25”-10”)
±0.23 mm
Up to 180 N
Stepper motor
24 VDC < 1 A
Compressed air (1/4” connection)
Serial communication
-
4-20mA (0-100%)
24 VDC
-
4-20mA (0-100%)
4-20mA (0-100°C)
Optional (Profinet, Ethernet IP or Modbus TCP)
