Pin Position

PXP-2LP

Pin Position Actuator

This actuator is primarily used to control the flow of the molten metal through a pin and spout valve in slab (rolling) ingot casting.

Download Data Sheet
Here’s a caption for this image, it gives context to the image, and looks cool.

Product information

The Pin Position Actuator PXP-2LP is primarily used to control the flow of molten metal trough a pin-plug valve in for instance ingot casting. The PXP-2LP actuator offers a lower height profile over the through or launder than the PXP-2(E). This means that it can be used in areas where space above the through or launder is restricted. This actuator can easily be adapted to fit any through configuration.

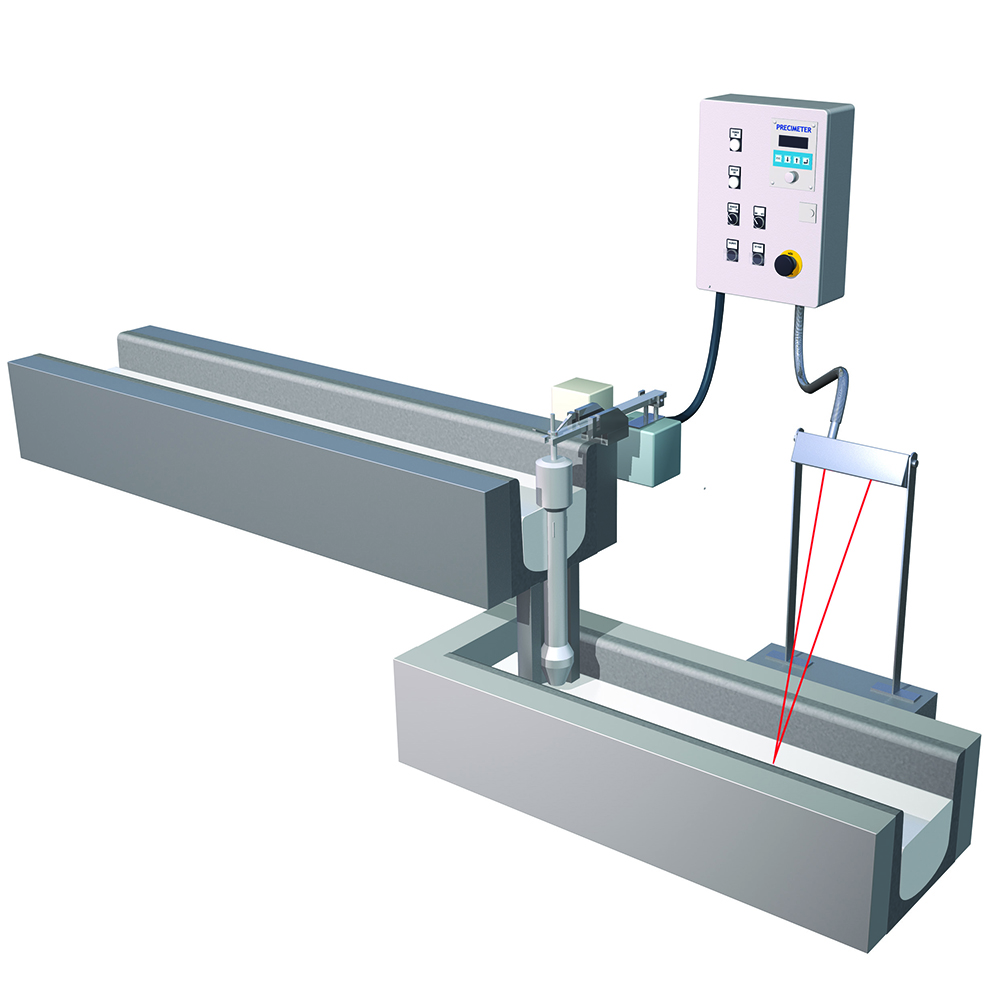

Vertical drop control with PXP-2LP pin positioner. The Precimeter pin position actuator PXP-2LP connected to the ProH and an MLC control panel form a system which very precisely controls the molten metal level, in for example a tundish or a DC slab casting mould.

Advantages

Low profile version
Accurate control
Robust design
Easy installation
Minimal maintenance
Terminal connection for parameter settings
Ethernet protocol (optional)
Product features
Laser sensor type
CD2350R3000
CD1000R900
CD1150R400
CD180R200
CD900R750
CD450R300
CD450R300
CD1500R1600
CD800R1500
CD900R500
CD700R300
CD450R300
CD300R300
CD240R325
Clearance distance
2350 mm (92.5")
1000 mm (39.4")
1150 mm (45.3")
180 mm (7.1")
900 mm (35.4")
450 mm (17.7")
450 mm (17.7")
1500 mm (59.0")
800 mm (31.5")
900 mm (34.4")
700 mm (27.6")
450 mm (17.7")
300 mm (11.8")
240 mm (9.4")
Measurement range
3000 mm (118.1")
900 mm (35.4")
400 mm (15.8")
200 mm (7.9")
750 mm (29.5")
300 mm (11.8")
300 mm (11.8")
1600 mm (63.0")
1500 mm (59.0")
500 mm (19.7")
300 mm (11.8")
300 mm (11.8")
300 mm (11.8")
325 mm (12.8")
Resolution
0.74mm (0.029")
0.22mm (0.009")
0.1mm (0.004")
0.05mm (0.002")
+- 1mm (0.04")
0.074mm (0.03")
0.074mm (0.03")
0.39mm (0.016")
0.37mm (0.015")
0.122mm (0.005")
0.08mm (0.003")
0.08mm (0.003")
0.08mm (0.003")
0.08mm (0.003")
Technical specifications

PXP 2LP - 1

Stroke:

PXP 2LP - 2

Accuracy:

PXP 2LP - 3

Pin Load Range:

PXP 2LP - 4

Positioning:

PXP 2LP - 5

Power Requirement:

PXP 2LP - 6

Cooling:

PXP 2LP - 7

Interface:

Operation Signals

PXP 2LP - 8

Arm/Rod Position

PXP 2LP - 9

Calibration:

Feedback signals

PXP 2LP - 10

Arm/Pin Position:

PXP 2LP - 11

Internat Temp Output:

PXP 2LP - 12

Ethernet Protocol:
6-50.4 mm (0.25-2.0”)
±0.38 mm
100N
Stepper motor
24 VDC < 1 A
Compressed air (1/4” connection)
Serial communication
-
4-20mA (0-100%)
24 VDC
-
4-20mA (0-100%)
4-20mA (0-100°C)
Optional (Profinet, Ethernet IP or Modbus TCP)
