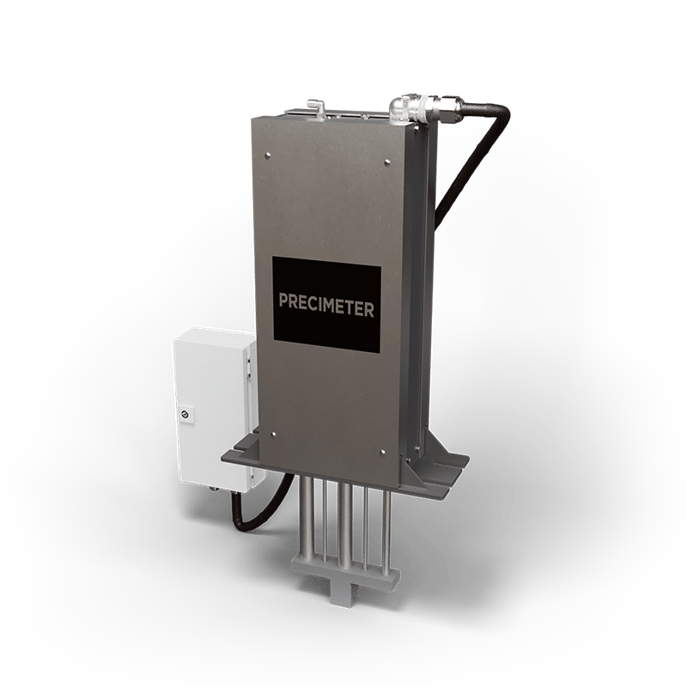

GXP-10

This Automatic and adjustable actuator is primarily used to control the flow of molten metal along a trough/launder through a gate valve (Dam).

Flexible mounting options

Can be mounted in different positions with linkage arm systems

Adjustable stroke lengths

Available to adjust with two stroke lengths

Precision and control

Accurate readings of molten metal levels

Easy installation

Simple to install and easy to use with minimal maintenance

GXP-10

Control in downstream casting process

Launder level control with Precimeter Gate Valve Actuator GXP-10 connected to the ProH level sensor and MLC control panel enables a very accurate control in the metal level downstream casting process. The Precimeter Gate Valve Actuator GXP-10 can be mounted in different positions with simple linkage arm systems. To avoid oxidation and high temperature exposure one mounting example is at the side of the casting launder.

IMG_0755

Advantages with GXP-10 actuator

Technical Specifications
Stroke 32-254 mm (1.25”-10”)
Accuracy ±0.23 mm
Gate Load Range Up to 180 N
Positioning Stepper motor
Power Requirement 24 VDC < 1 A
Cooling Compressed air (1/4” connection)
Interface Serial communication
Arm/Rod Position 4-20mA (0-100%)
Calibration 24 VDC
Arm/Pin Position 4-20mA (0-100%)
Internal Temp Output 4-20mA (0-100°C)
Ethernet Protocol Optional (Profinet, Ethernet IP or Modbus TCP)
