Pin Position Actuator


Pin position actuator with fail safe emergency close functionality.

arrow icon
Accurate control
Administer molten metal evenly through a stopper and nozzle valve
arrow icon
Emergency closing function
Adding security with a fail safe emergency closing system
arrow icon
Flexible mounting options
Can be used to control horizontal as well as vertical drops
arrow icon
Suitable for different castings
Diverse actuator that can be used in ingot and/or slab casting, and more

Controlling flow securily

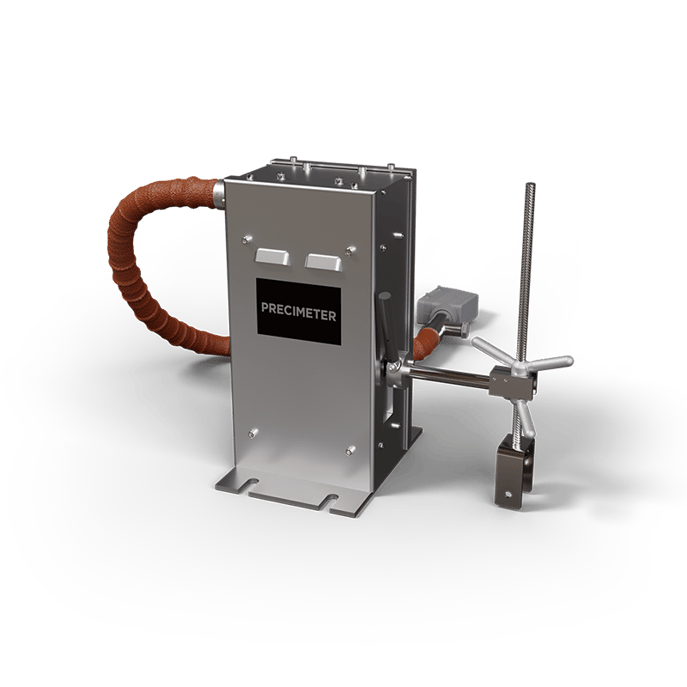

The Pin Position Actuator PXP-2EM is primarily used to control the flow of molten metal through a stopper and nozzle valve; for instance in ingot/slab casting applications. The PXP-2EM is also prepared with a fail safe emergency closing system. Vertical drop control with PXP-2EM pin positioner. The Precimeter pin position actuator PXP-2EM connected to the ProH and an MLC control panel form a system which very precisely controls the molten metal level, in for example a tundish or a DC slab casting mould.

Advantages with PXP-2EM actuator

Technical Specifications

0-50 mm (0-2”)
±0.15 mm
Stepper motor
Power Requirement
24 VDC < 1 A
Compressed air (1/4” connection)
Serial communication
Arm/Rod Position
4-20mA (0-100%)
Load Carriage
24 VDC
24 VDC
Arm/Pin Position
4-20mA (0-100%)
Carriage Loaded
24 VDC
Internal Temp Output
4-20mA (0-100°C)
Ethernet Protocol
Optional (Profinet, Ethernet IP or Modbus TCP)
