Tap Out Actuator

TXP-10

Increase quality and safety with Furnace tap out actuators. Stabilize the molten metal flow and control your launder levels.

Flexible mounting options
Position the actuator precisely where it is needed
Adjustable to fit
Available to adjust with two stroke lengths
Minimal maintenance
Designed to need basic maintenance
Robust design
Manufactured to endure and resist harsh environments

Exit tap flow control

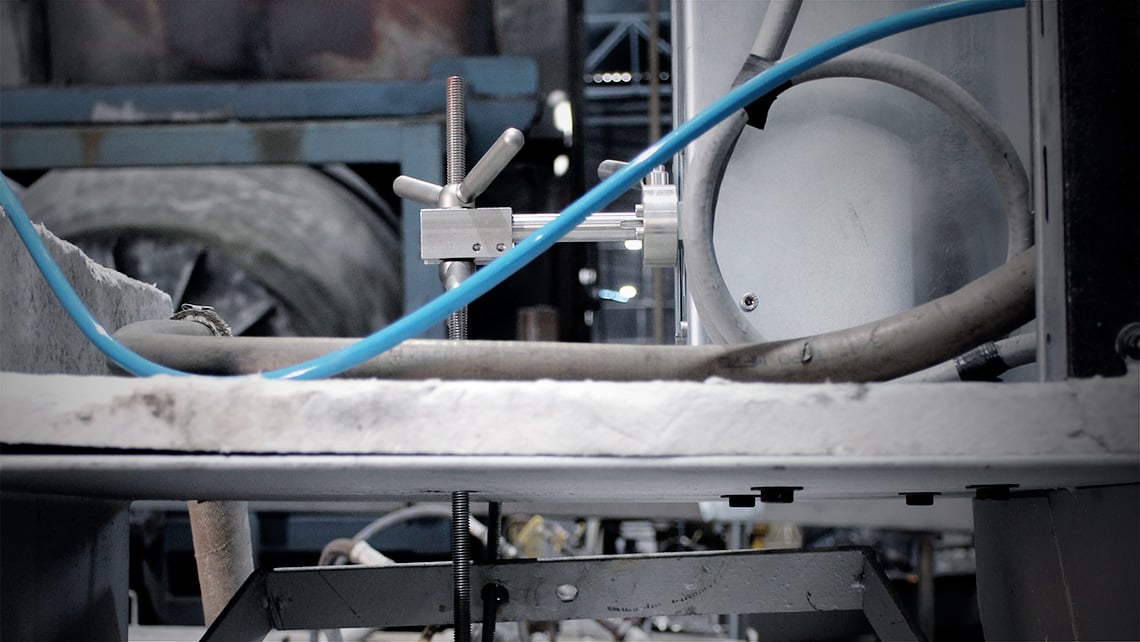

The Tap Out Actuator TXP-10 is primarily used to control the flow of molten metal launder at the exit tap hole of a stationary furnace. The TXP-10 can be mounted vertically with a special linkage arm system which has a stroke of 101 mm (4”).This actuator is also avaliable as the TXP-20 with a 20” stroke. Furnace tap out control with TXP-10 Tap Out Actuator.

The Precimeter TXP-10 actuator connected to the ProH and an MLC control panel form a system that accurately controls the molten metal level and flow out of the stationary furnace.

Advantages with TXP-10

Technical Specifications

Stroke
Accuracy
Closing Force
Positioning
Power Requirement
Cooling
Interface
Arm/Rod Position
Calibration
Arm/Pin Position
Internal Temp Output
Ethernet Protocol
32-254 mm (1.25”-10”)
±0.24 mm
1000N
Stepper motor
24 VDC < 1 A
Compressed air (1/4” connection)
Serial communication
4-20mA (0-100%)
24 VDC
4-20mA (0-100%)
4-20mA (0-100°C)
Optional (Profinet, Ethernet IP or Modbus TCP)
