OFG-285

If you need to be more than 100% safe and want to avoid overfilling your launders at any cost, the OFG (Over Fill Guard) can be installed as an additional protection and failsafe redundancy.

arrow icon
Prevent over-filling situation
Helps avoid security risks with over-filling launders
arrow icon
Compact design
Neat design to fit mounting on brackets and hang above metal levels
arrow icon
Easy installation
The sensor has a built-in safety circuit and can easily be mounted on the outside of the launder
arrow icon
Automatic tilting function
Optional to add an automatic tilting function

Product Information

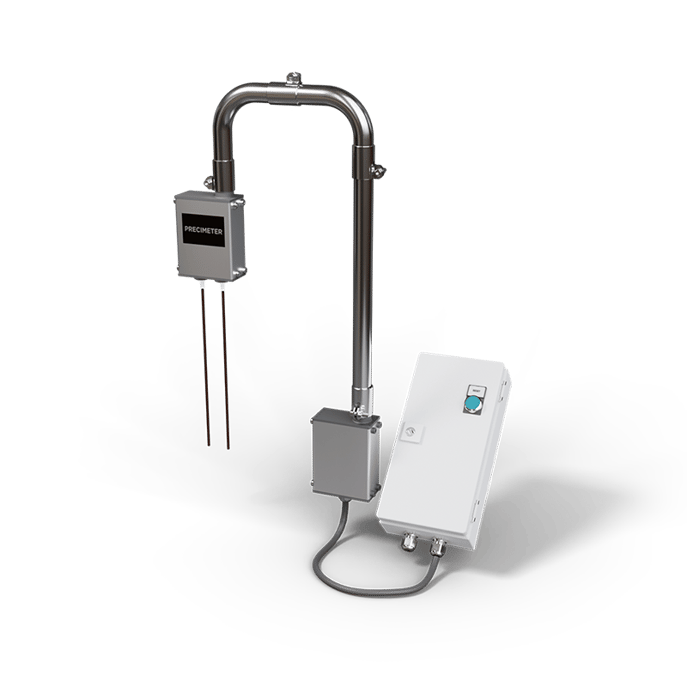

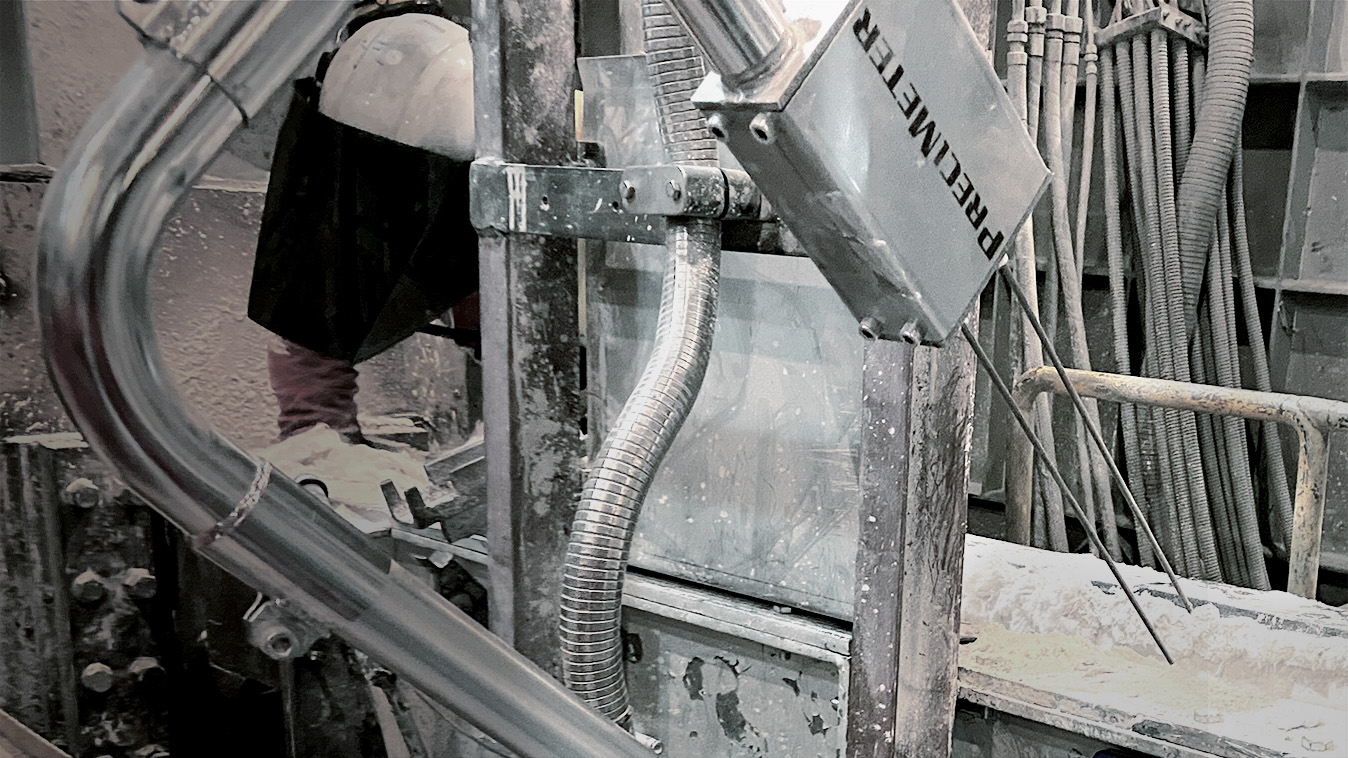

The OFG-285 consists of a main unit with a safety circuit and a swing arm conduit to an electrode head. The main box can be mounted to brackets 50 mm (2”) outside a launder. The electrode head is to be swung over the molten metal and leveled so that the ends of the electrodes hit just above the maximum allowed level in the launder. The electrode head can be swung out from the launder during maintenance.

Advantages with OFG laser sensor extension

Technical Specifications

Power requirement
24 VDC +15 % / 0.4 A
Power consumption
< 2.8 W
Closure stainless steel
IP 66 / NEMA 4
Dimensions Main Box
300x150x80 mm (11.8”x5.9”x3.2”)
Dimensions Electrode Head
100x100x80 mm (3.9”x3.9”x3.2”)
Electrode length
285 mm (11.2”)
Digital output
Over-filling limit, interlocking relay contacts. Failure monitoring on connections to electrodes.

sensor models

Sensor Model
No items found.
Clearance Distance
No items found.
Measurement Distance
No items found.
