Die Casting
Charging Control

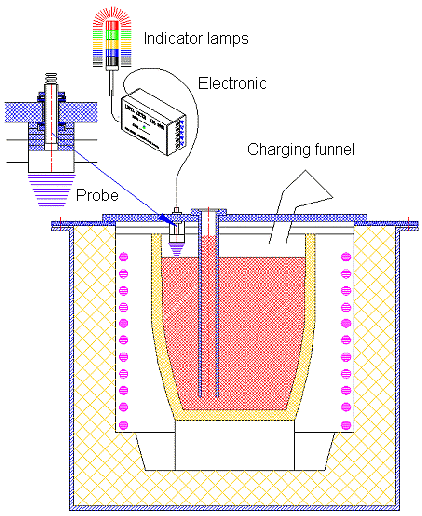

Charging monitoring with a gastight sensor (PLP)
Precimeter has developed a gas-tight Inductive sensor (PLP) for this application, to supervise filling of the furnace. The Inductive sensor and the appropriate electronics can be used to set up to 5 switching points to accurately indicate the filling level using 5 different coloured signal lights or relay contacts.

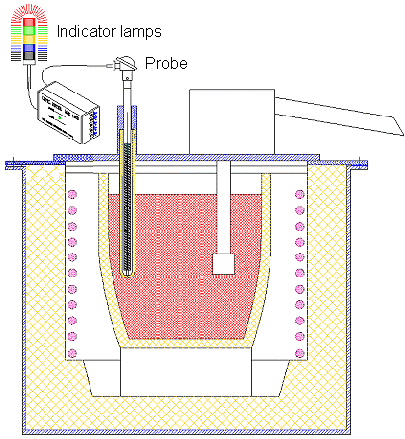

Charging monitoring and level measurement with wider fluctuations in level
With a gas tight dosing furnace, the furnace level can be monitored by a submerged sensor (CLP) and the appropriate electronics with programmed limit values from Precimeter.

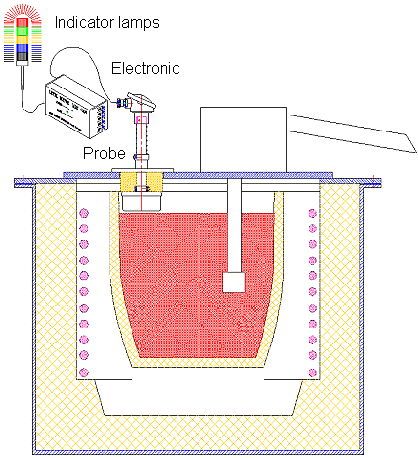

Charging monitoring with open furnace systems
With open furnace systems the inductive sensor (PLP) and the appropriate electronics can be used with up to 5 switching points to accurately indicate and monitor the filling level.
