Laser Camera Sensors

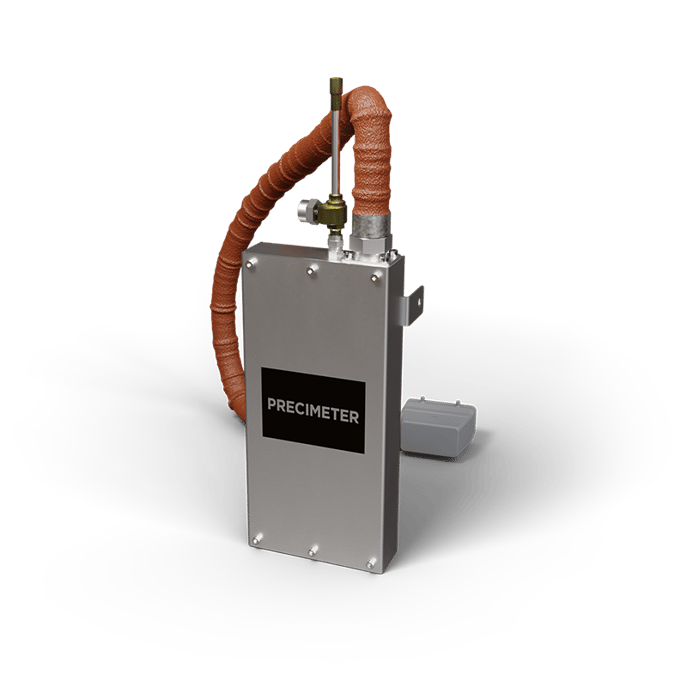

ProH Narrow

The Precimeter ProH Narrow Laser Camera Sensor is designed for precise molten metal level measurement in confined spaces. Its advanced laser triangulation technology and built-in PI controller ensure accurate and stable readings even in harsh industrial environments with heavy steam and smoke.

Extremely accurate

High performance laser triangulation technology

Compact design

Premium laser in a more narrow case

Easy installation

Built-in PI controller eliminates need for an external industrial controller

Stable performance

Advanced technology enables stable readings in any environment

ProH Narrow

Slim design to fit narrow spaces

The Laser Camera Sensor model ProH from Precimeter combines high performance laser triangulation with the necessary control functions to maintain an accurate molten metal level measurement. The digital camera technology in the Precimeter sensors results in very high performance and resolution. With the use of Laser Class II, no special safety measures are required. The advanced technology enables stable readings even when the molten metal material reflectivity changes dramatically and/or in harsh conditions with heavy steam and smoke environment. The built in PI controller eliminates the need for an external industrial controller.

laserpunkter nära_22

Advantages with ProH Narrow Laser Camera Sensor

Technical Specifications
Power Requirement 24 VDC < 1 A
Level Output 4–20 mA
Internal Temp Output 4–20 mA (0–100°C, 32–212°F)
Digital Input Light source on/off
Digital Output Sensor status
Resolution ±0.15 mm
Ethernet Protocol Optional (Profinet, Ethernet IP or Modbus TCP)
Interface Precimeter tool (PC software)
Sampling Rate 50 Hz
Laser Power < 1 mW (Laser class 2) / < 5 mW (Laser class 3R)
Cooling Compressed air (3/8” connection)

Sensor models

Sensor Model Clearance Distance Measurement Distance
Sensor Model ProH CD900R600 Clearance Distance 900 mm (35.4”) Measurement Distance 600 mm (23.6”)
