Actuators

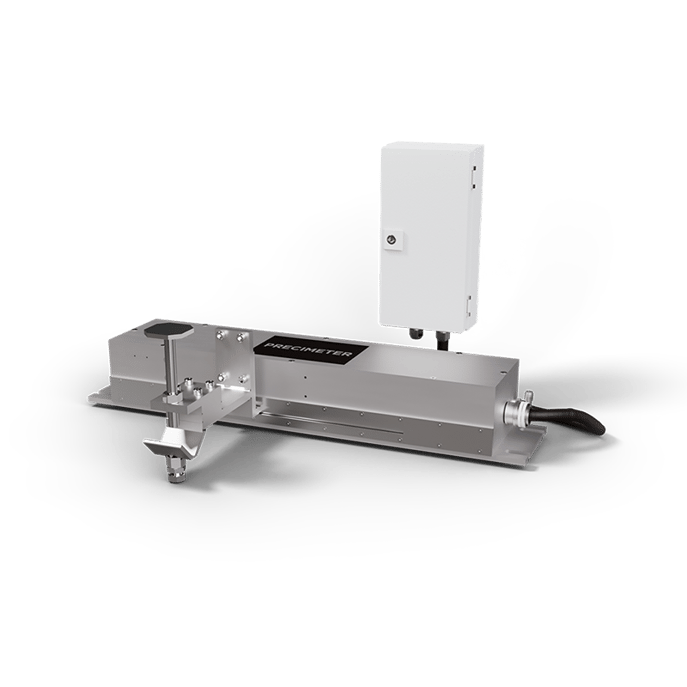

TXP-10

Increase quality and safety with Furnace tap out actuators. Stabilize the molten metal flow and control your launder levels.

Flexible mounting options

Position the actuator precisely where it is needed

Adjustable to fit

Available to adjust with two stroke lengths

Minimal maintenance

Designed to need basic maintenance

Robust design

Manufactured to endure and resist harsh environments

TXP-10

Exit tap flow control

The Tap Out Actuator TXP-10 is primarily used to control the flow of molten metal launder at the exit tap hole of a stationary furnace. The TXP-10 can be mounted vertically with a special linkage arm system which has a stroke of 101 mm (4”).This actuator is also avaliable as the TXP-20 with a 20” stroke. Furnace tap out control with TXP-10 Tap Out Actuator.

The Precimeter TXP-10 actuator connected to the ProH and an MLC control panel form a system that accurately controls the molten metal level and flow out of the stationary furnace.



IMG_0740

Advantages with TXP-10

Technical Specifications
Stroke 32-254 mm (1.25”-10”)
Accuracy ±0.24 mm
Closing Force 1000N
Positioning Stepper motor
Power Requirement 24 VDC < 1 A
Cooling Compressed air (1/4” connection)
Interface Serial communication
Arm/Rod Position 4-20mA (0-100%)
Calibration 24 VDC
Arm/Pin Position 4-20mA (0-100%)
Carriage Loaded 24 VDC
Internal Temp Output 4-20mA (0-100°C)
Ethernet Protocol Optional (Profinet, Ethernet IP or Modbus TCP)
