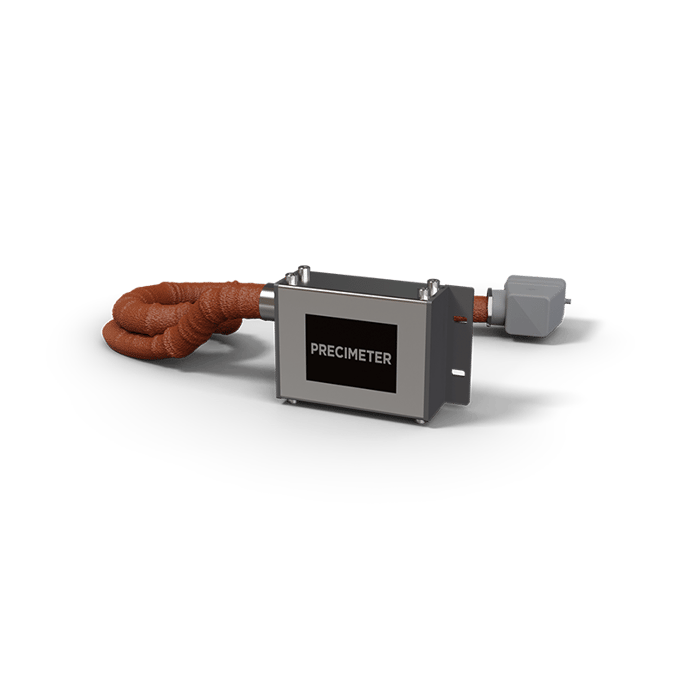

TAFB

Tilt angle feedback sensor for easy installation on any tilting furnace/crucible.

Tilting feedback of your furnace

Control the tilting of your furnaces to make sure consistant and steady flow

Compact design

Minimal design specfically developed for its purpose

Easy installation

Easily mounted on any tilting furnace and/or crucible

Maintenance free

Created to fit the casting environment and produce solid readings

TAFB

Product Information

The Tilt Angle Feedback (TAFB) is designed for use in control of a tilting furnace whenever feedback of the tilt angle is needed. The sensor is specifically engineered for use in foundries for tilt angle feed back on furnaces, ladles, launders etc in conjunction with other Precimeter equipment for metal level control. The TAFB is a 1-dimensional ±45° tilt angle sensor.



Furnace

Advantages with TAFB extension

Technical Specifications
Measurement axes 1 axis
Measurement ranges ±45°
Resolution (at zero point) 0.05°
Calibration accuracy (at 25° C) 300x150x80 mm (11.8”x5.9”x3.2”)
Nonlinearity (sine) Max. ±0.3°
Temperature coefficient (zero point) ±0.009 °/K
Critical frequency typ 18 Hz
Operating temperature Up to +80 °C
Interface current loop 4-20 mA
Supply voltage 15 V DC to 30 V DC
Current consumption < 25 mA
Degree of protection IP65/67
Shock survival Max 3500 g
