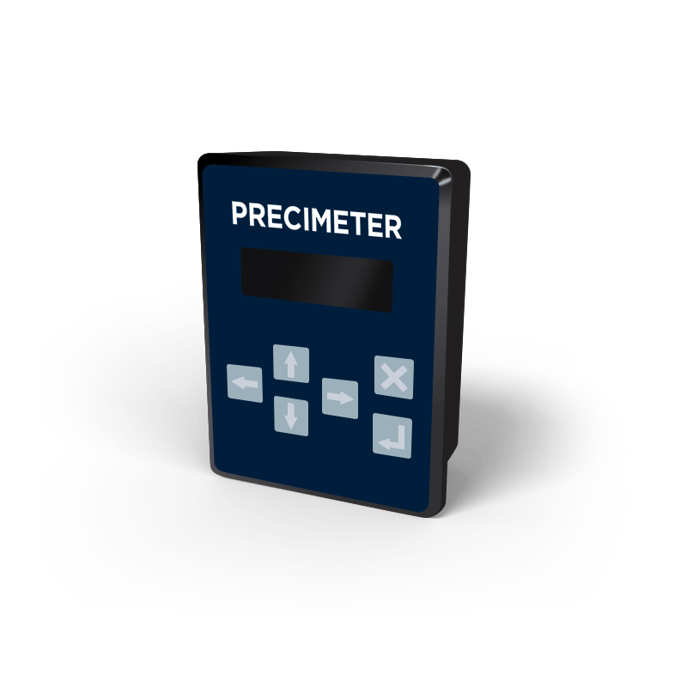

MP2020 Electronic Box

This easy-to-use electronic box lets you control and manage your Precimeter inductive sensors.

4 adjustable level switches

Control inductive sensors with 4 adjustable level switches

Dual measurements

Manage level measurement and internal temperature

Flexible setup

Option to add ethernet protocol communication

Easy to use

Simple display (level: 0–100%), with key controls

MP2020-1

Product Information

The MP2020 electronic box, dedicated for our CLP, PLP and RP inductive sensors with digital display. It can be used connected to a PLC-based control system or to a separate/standalone indicator system.



IMG_0940

Advantages with MP2020 extension

Technical Specifications
Power Requirement 24 VDC < 1 A
Display 0-100%
Level measurement 4-20mA
Level switching outputs 4 switches NO/NC
Internal Temp Output 4–20 mA (0–100°C, 32–212°F)
Alarms Temp alarm GND, General alarm 1 switch NO/NC
Operating temperature -25C - 65C
Ethernet Protocol Optional (Profinet, Ethernet IP or Modbus TCP)
