Laser Camera Sensors

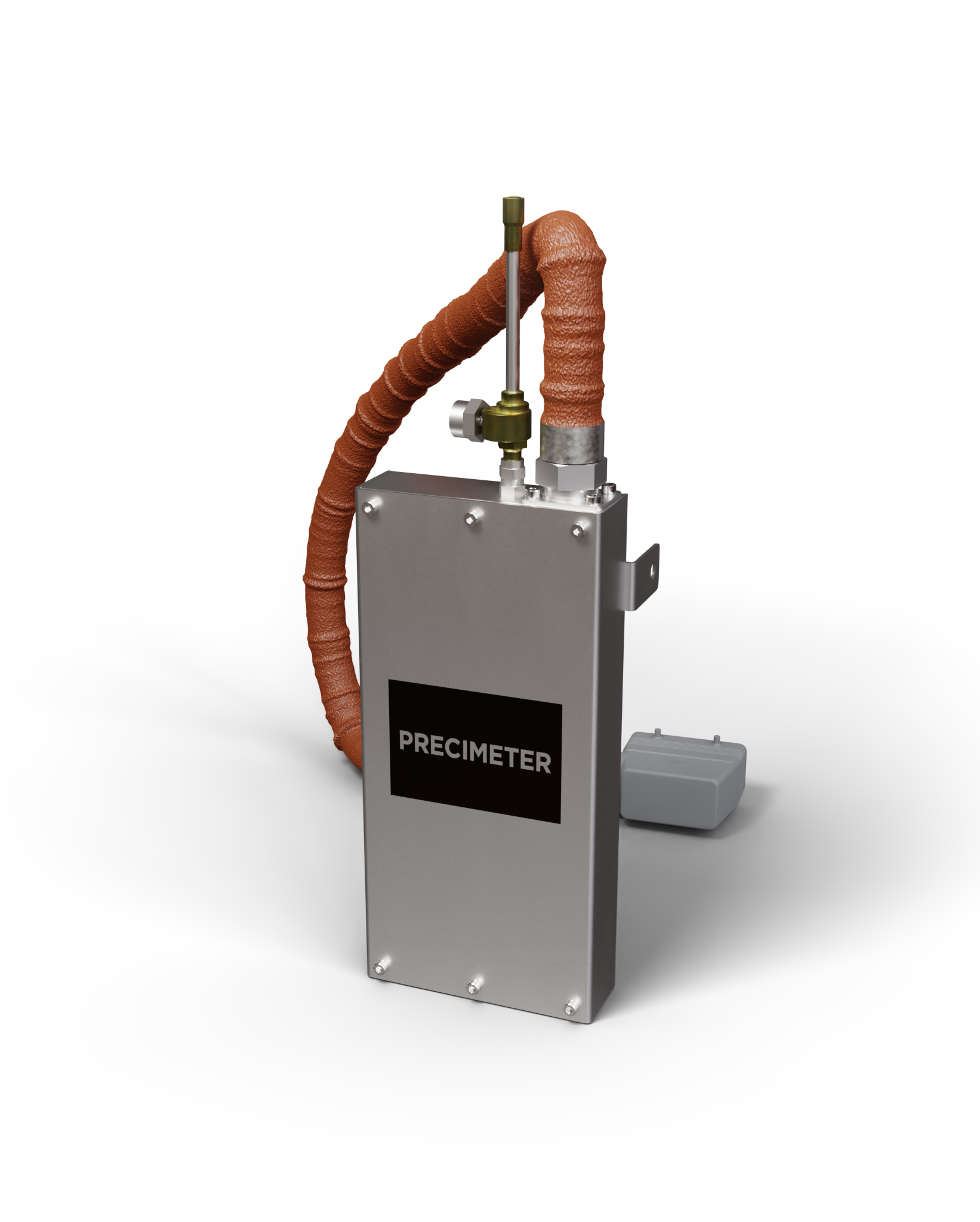

ProH Narrow

Download Data Sheet
Here’s a caption for this image, it gives context to the image, and looks cool.

Product information

The Laser Camera Sensor model ProH from Precimeter combines high performance laser triangulation with the necessary control functions to maintain an accurate molten metal level measurement. The patented digital camera technology in the Precimeter sensors results in very high performance and resolution. With the use of Laser Class II, no special safety measures are required. The advanced technology enables stable readings even when the molten metal material reflectivity changes dramatically and/or in harsh conditions with heavy steam and smoke environment. The built in PI controller eliminates the need for an
external industrial controller.

Advantages

Extremely accurate measurement
Stable performance in harsh conditions/environment
Easy installation
Compact design
Maintenance free
Surface adaption system
No calibration needed for each specific installation
Precimeter Tool (PC Software) for access to all sensor parameters
Features of product
No items found.
No items found.
No items found.
No items found.
Technical specifications
Power Requirement:

ProH Narrow - 1

Level Output:

ProH Narrow - 2

Internal Temp Output:

ProH Narrow - 3

Digital Input:

ProH Narrow - 4

Digital Output:

ProH Narrow - 5

Resolution:

ProH Narrow - 6

Ethernet Protocol:

ProH Narrow - 7

Interface:

ProH Narrow - 8

Sampling Rate:

ProH Narrow - 9

Laser Power:

ProH Narrow - 10

Cooling:

ProH Narrow - 11

Empty row

24 VDC < 1 A

-

4–20 mA

-

4–20 mA (0–100°C, 32–212°F)

-

Light source on/off

-

Sensor status

-

±0.15 mm

-

Optional (Profinet, Ethernet IP or Modbus TCP)

-

Precimeter tool (PC software)

-

50 Hz

-

< 1 mW (Laser class 2) / < 5 mW (Laser class 3R)

-

Compressed air (3/8” connection)

-

-

Sensor models
Sensor Model
ProH CD900R600
Clearance Distance
900 mm (35.4”)
Measurement Distance
600 mm (23.6”)
